Can You Stack Thermal Pads? Engineering Risks Explained

Yes, thermal pads can be physically stacked. But two thin pads are not automatically equivalent to one pad of the same total thickness.

Every extra layer creates another contact interface. That middle boundary can add thermal resistance, trap air, collect contamination, slide under shear, or split compression unevenly. A short temperature test may look fine. Long-term reliability can still be uncertain.

For a temporary, low-risk repair, a carefully assembled stack may work after inspection and temperature testing. For mass production, automotive electronics, medical hardware, aerospace systems, high-voltage power modules, or other reliability-sensitive equipment, one qualified pad of the correct thickness is normally the better answer.

In plain English: stacking is possible. It is rarely the first-choice engineering solution.

Why Engineers Usually Avoid Stacking Thermal Pads

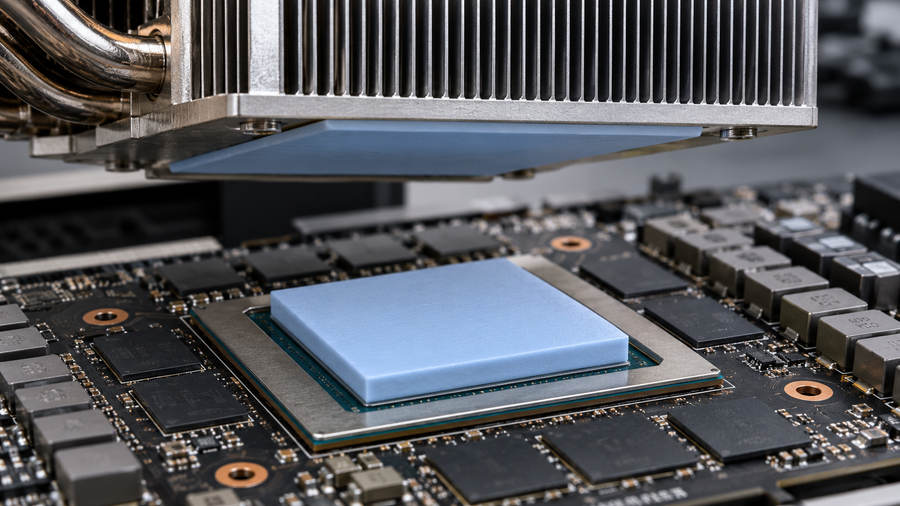

A thermal pad sits between a heat source and a cooling surface. Its job is to replace insulating air, follow surface roughness, and create a stable path for heat.

With one pad, the heat path looks like this: heat source -> thermal pad -> heat sink

There are two main contact interfaces:

1. Heat source to pad
2. Pad to heat sink

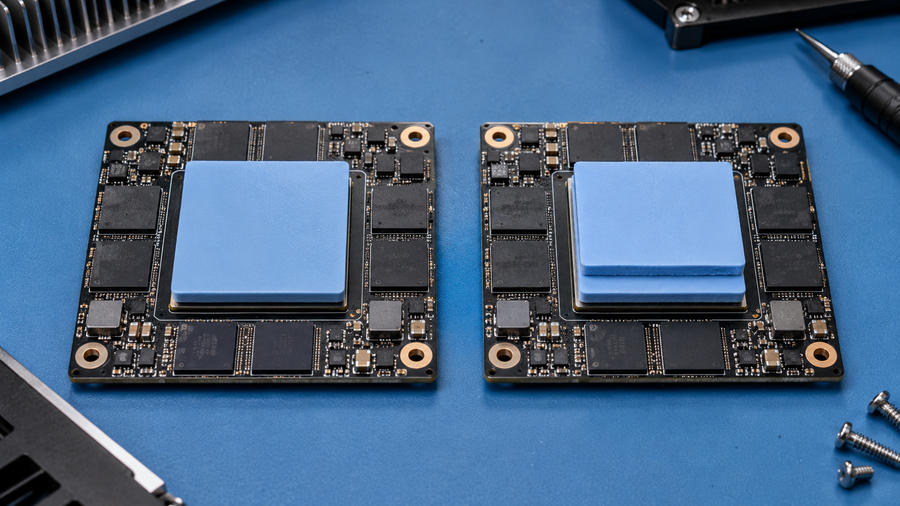

With two pads, the path becomes: heat source -> pad 1 -> pad 2 -> heat sink

Now there are three contacts. The new pad-to-pad boundary is the concern.

The two layers may look flat to the eye. At a microscopic level, they still contain surface texture, filler particles, tack variation, dust, and tiny air pockets. Pressure can reduce those voids, but it does not make the interface disappear.

A Stack Can Work Without Being the Best Design

This distinction matters:

• Can it transfer heat? Often, yes.
• Peut it pass a short bench test? Possibly.
• Will every production unit behave the same way? Less certain.
• Will it remain stable after years of cycling and vibration? That requires evidence.

Think of two mattresses stacked to reach the height of one thick mattress. The height can match. The way the stack shifts, compresses, and supports load does not.

That is more or less what happens here, just with heat involved.

How an Extra Interface Changes Thermal Resistance

Thermal resistance is the opposition to heat flow. Lower resistance generally means heat can move through the interface with a smaller temperature rise.

For a simplified single-pad interface: Rsingle = Rc,hot + t/kA + Rc,cold

Où ?

• Rc,hot is contact resistance at the hot surface.
• t is the compressed pad thickness.
• k is through-plane thermal conductivity.
• A is effective contact area.
• Rc,cold is contact resistance at the cooling surface.

For two stacked pads: Rstack = Rc,hot + t1/k1A + Rc,1-2 + t2/k2A + Rc,cold

The new term is Rc,1-2, the contact resistance between the two pads.

Does Stacking Double Thermal Resistance?

No. That claim is too simple.

If two pads use the same material and their combined compressed thickness equals one thicker pad, the bulk conduction part can be similar. The problem is the added middle interface and the less predictable mechanical behavior.

The size of the penalty depends on:

• Pression de contact
• Pad modulus
• Rugosité de la surface
• Adhérence de surface
• Trapped air
• Contamination
• Répartition de la charge
• Température
• Compression history

An open-access study of thermal-pad contact resistance reported that contact resistance represented 2.2% to 45.85% of total thermal resistance across the cases modeled in that work. That range should not be copied directly into a product design. It does show why contact conditions cannot be ignored.

Thermal Conductivity Is Not the Whole Answer

A W/mK value describes bulk material behavior. It does not include every real interface effect unless the reported method and conditions say so.

When comparing one pad with a stack, look at:

• Épaisseur finale après compression
• Impédance thermique
• Pression de contact
• Number of interfaces
• Surface conformity
• Device temperature
• Stabilité à long terme

HAKTAK’s explanation of conductivité thermique en fonction de l'impédance thermique provides more context for this difference.

Are Two 0.5 mm Thermal Pads Equal to One 1.0 mm Pad?

Not necessarily.

Their nominal thickness adds up to 1.0 mm. That arithmetic is correct. The installed interface may still behave differently.

Nominal Thickness Is Only the Starting Point

Each sheet has its own manufacturing tolerance. Two pads can stack those tolerances in the same direction.

Par exemple :

• Pad 1 is nominally 0.5 mm but measures 0.54 mm.
• Pad 2 is nominally 0.5 mm but measures 0.54 mm.
• The total supplied stack is 1.08 mm, not 1.00 mm.

That difference may sound small. In a tightly clamped GPU cooler or thin laptop assembly, it can change contact with another component.

Compression May Not Split Equally

Assume a 1.0 mm stack must fit into a 0.85 mm gap. Total nominal compression is 15%.

If both layers are identical and loaded evenly, each may compress by roughly the same proportion. If one layer is softer, it can absorb most of the movement.

Selecting material by simple addition misses tolerance, adhesive, hardness, and contact.

For a stronger method, measure the real gap and follow HAKTAK’s guide to choix de l'épaisseur du tampon thermique.

Compression Becomes Harder to Predict in a Pad Stack

Thermal pads need compression to conform to surfaces. Too little compression leaves air gaps. Too much can overload the assembly.

The basic calculation is:

Compression (%) = (épaisseur à la livraison – épaisseur après pose) / épaisseur à la livraison × 100

Run it at the minimum, nominal, and maximum gap.

Two Layers May Not Share the Load

Compression depends on the stress-strain behavior of each pad. Shore hardness gives a useful clue, but it does not show the full force-deflection curve.

When different materials are stacked:

• The softer layer may compress heavily.
• The harder layer may remain nearly unchanged.
• Contact pressure may not be uniform.
• The middle interface can curve or wrinkle.
• One layer may extrude earlier.

Even pads with the same printed hardness can behave differently because of filler loading, reinforcement, surface films, and test methods.

HAKTAK’s soft versus hard thermal pad comparison explains why hardness and available assembly force must be considered together.

Total Area Changes the Force Requirement

The relationship is simple: Force = pressure x area

A large pad needs more total force to reach the same average pressure. Stacking does not create extra clamp force. It asks the existing screws, clips, springs, or housing to compress a more complex interface.

If the assembly is already close to its force limit, adding another layer can:

• Pliez le circuit imprimé
• Tilt the heat sink
• Contraintes sur les soudures
• Load fragile packages
• Distort a thin cover
• Reduce contact elsewhere

HAKTAK’s guide to rapport de compression du coussin thermique shows why the compression window must include mechanical safety.

Trapped Air, Misalignment, and Contamination Between Pads

The middle interface must be as clean and complete as the two outer surfaces. In repair work, that is harder than it sounds.

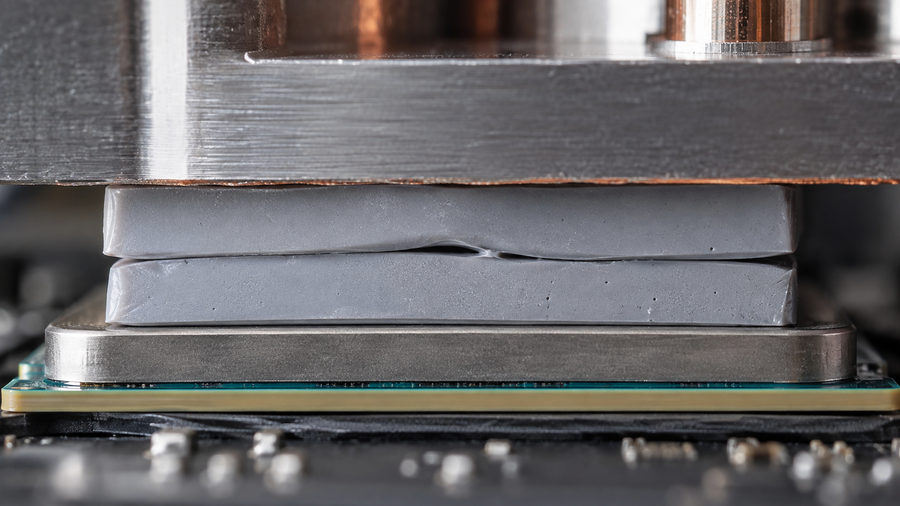

Air Can Remain Between the Layers

Air may enter the middle interface because of:

• Surface texture
• Curled corners
• Uneven placement
• Dust or fibers
• Fingerprints
• A pad that was previously compressed
• Wrinkles created during liner removal

Pressing the stack harder may reduce some voids. It may also create too much force elsewhere.

Misalignment Reduces Effective Area

If two 20 x 20 mm pads are offset by 2 mm, the full overlapping area becomes smaller. The exposed edge may also interfere with a connector, component, or electrical-clearance region.

Cutouts and holes make alignment more sensitive. A screw opening that looks fine in the first layer can partly close when the second pad shifts.

Should Thermal Paste Be Added Between Two Pads?

Usually, no.

Thermal paste is designed to fill microscopic surface roughness in a thin, clamped interface. It is not meant to become a structural spacer between thick gap pads.

Adding paste between pads introduces:

• Another material
• Another application thickness
• More opportunity for contamination
• Slip between layers
• Mess during rework
• Possible pump-out or migration
• Poor production repeatability

A controlled manufacturer-designed coating is different. It has a defined formulation, process, thickness, and qualification. A repair-bench smear does not.

Mechanical Reliability Risks Beyond Temperature

A stacked pad may pass an initial temperature check and still fail mechanically later.

Shear and Sliding

Components, PCBs, aluminum housings, and copper cold plates expand at different rates. Heating and cooling create small movements across the interface.

With one pad, shear occurs mainly at the external contacts and inside the compliant material. With two pads, the middle boundary can become another slip plane.

Vibration and shock can make this worse in:

• Vehicles
• Industrial machinery
• Rail equipment
• Outdoor telecom systems
• Portable electronics
• Servers during transport

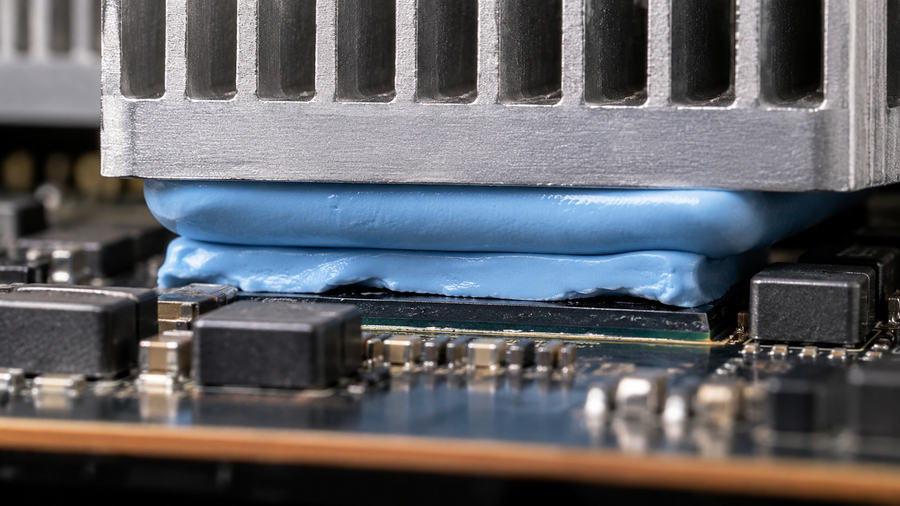

Delamination and Edge Extrusion

Soft layers may squeeze outward at different rates. One pad can move while the other stays attached to the heat sink.

Possible evidence includes:

• Offset edges
• A visible step between layers
• Wrinkling
• Torn corners
• Reduced overlap
• Oil or residue at the middle interface

Compression Set and Unequal Recovery

Compression set is the permanent deformation that remains after a pad has been compressed.

Two layers may age differently. After long heat exposure:

• One layer may recover.
• The other may remain flattened.
• Contact pressure can shift.
• The middle boundary may open locally.

A short startup test does not reveal this behavior.

Electrical Insulation Can Also Change

Stacking two electrically insulating pads may increase nominal insulation thickness. It does not automatically create a safer dielectric system.

Vérifier :

• Épaisseur finale après compression
• Aligned edges
• Puncture over sharp features
• Contamination between layers
• Adhesive construction
• Creepage and clearance
• Breakdown performance after aging

Graphite sheets require extra care because graphite can be electrically conductive. Combining graphite and silicone materials should be treated as an engineered laminate, not casual stacking.

Can You Stack Different Types or Brands of Thermal Pads?

It is riskier than stacking two pieces of the same product.

The color of two pads does not prove compatibility. Neither does the same W/mK rating.

Material identity should include:

• Product number
• Épaisseur
• Dureté ou module
• Force-deflection data
• Adhérence de surface
• Adhesive and reinforcement
• Température de fonctionnement
• Propriétés diélectriques
• Kit de compression

When Stacking Thermal Pads Might Be Acceptable

There are situations where a stack may be tolerated. The important word is “may.”

Temporary Low-Risk Repair

A temporary stack can be considered when:

• The correct pad is not immediately available.
• The equipment is low risk.
• The exact gap is reasonably known.
• Both pads are clean and undamaged.
• Temperature can be monitored.
• The interface can be reopened and inspected.
• The stack will later be replaced.

This is a workaround, not a permanent material specification.

Prototype or Early Engineering Evaluation

Stacked sheets can help estimate:

• Approximate gap
• Required thickness
• Heat sink fit
• Compression sensitivity
• Whether a softer material is needed

Mark the prototype clearly. Temporary fixes have an odd habit of becoming production designs when nobody writes down that they were temporary.

Supplier-Designed Laminates

Some thermal materials contain several layers by design:

• Renfort en fibre de verre
• PET or PEN film
• Adhésif sensible à la pression
• Graphite heat spreader
• Electrical insulation film
• Protective surface layer

These are not improvised stacks. The manufacturer controls lamination, thickness, interfaces, and testing. The final construction is supplied as one product.

When You Should Not Stack Thermal Pads

Stacking should be rejected by default when failure consequences or reliability requirements are high.

Do not use unknown scraps, previously compressed pads, or mixed materials in a critical stack. The few dollars saved are not worth losing the interface history.

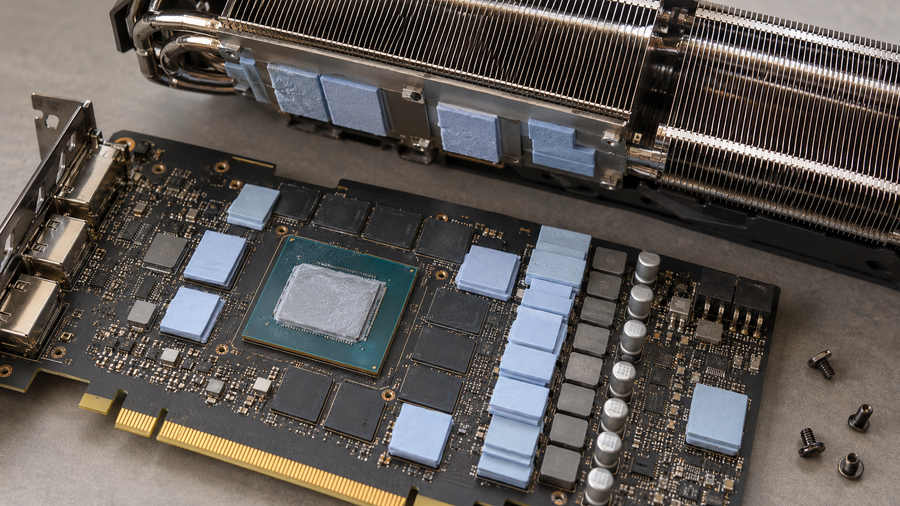

Stacking Thermal Pads in GPUs and VRAM

GPU repair is where this question appears most often.

A graphics-card cold plate may contact:

• GPU die
• VRAM packages
• MOSFET
• Chokes
• Backplate regions

These interfaces share the same screws and cooler position.

If stacked VRAM pads are too thick or too hard, they can hold the cold plate above the GPU die. Memory temperature may improve while GPU core and hot-spot temperatures rise sharply.

Before approving a stack:

1. Confirm the original pad thickness and material behavior.
2. Remove every protective liner.
3. Inspect the GPU paste imprint after a controlled test fit.
4. Check pad compression marks.
5. Tighten the cooler in the specified sequence.
6. Monitor core, hot-spot, memory, and fan behavior.

Do not judge success from VRAM temperature alone.

Can You Stack Thermal Pads on an SSD?

It may work in a low-risk setup, but the same concerns remain.

M.2 SSDs can have different heights at the:

• Contrôleur
• NAND packages
• DRAM
• Labels
• Rear-side components

Some heat sinks use a small clip or thin cover. Clamp force can be limited. A thick stack may bend the SSD PCB or prevent the enclosure from closing correctly.

For double-sided drives, check both sides. Solving the top gap while overloading the bottom is not much of a win.

Use the thinnest single material that maintains contact across the intended components without bending the board.

Stacking Risks in Power Electronics, Batteries, LEDs, and Servers

MOSFETs and IGBT Modules

These assemblies often need electrical insulation as well as heat transfer. Stacking adds uncertainty to compressed dielectric thickness, puncture resistance, torque, and power-cycling behavior.

Batteries pour véhicules électriques et composants électroniques du système de gestion de batterie (BMS)

Large pad areas can require substantial force. Battery assemblies also face vibration, coolant exposure, long service life, and strict traceability. Improvised stacks are a poor default.

Modules LED

Uneven compression can create local hot spots under an LED board. Long heat exposure may also change the two layers differently.

AI Servers and High-Power Accelerators

Server hardware places a high value on repeatable assembly and uptime. A pad stack that saves sourcing time can add service risk across many expensive units.

Telecom and Industrial Controls

Remote equipment may run continuously for years. Qualification should include thermal cycling, vibration where relevant, and post-aging thermal checks.

Better Alternatives to Stacking Thermal Pads

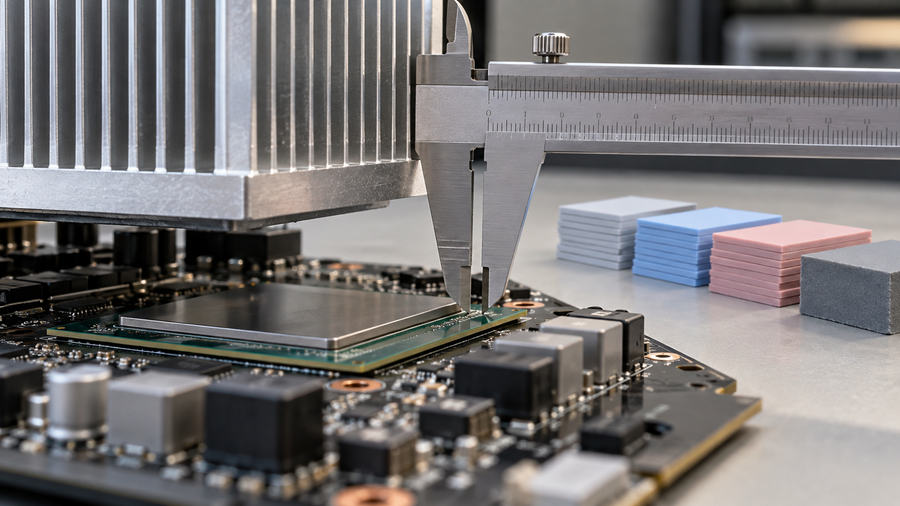

Use One Pad in the Correct Thickness

This is normally the cleanest answer.

One pad provides:

• Fewer interfaces
• Simpler compression behavior
• Une meilleure traçabilité
• Montage plus facile
• Cleaner rework
• More reliable inspection

For production programs, a custom thermal pad design can define thickness, hardness, tack, shape, liner, packaging, and validation together. HAKTAK also supports coussinets thermiques en silicone in sheet, roll, and custom die-cut formats.

Use Thermal Putty for Unusual or Variable Gaps

Thermal putty is more conformable than a fixed sheet. It can suit:

• Several component heights
• Surfaces irrégulières
• Hard-to-measure gaps
• Low available pressure
• Early design validation

The tradeoff is process control. Applied amount, placement, residue, and movement still need attention. HAKTAK’s guide to pâte thermique ou coussinets thermiques ? explains when each format fits.

Use a Dispensable Gap Filler

A matériau de remplissage thermoconducteur can cover complex geometry and wide tolerance at low assembly stress.

It requires control of:

• Mix ratio for two-part systems
• Dispensed volume
• Bead shape
• Voids
• Cure
• Remaniement
• Production equipment

Again, there is no magic material. There is only a better match for the actual interface.

Correct the Mechanical Stack

Sometimes the pad is being asked to repair a mechanical problem.

Better options may include:

• Machining the heat sink
• Adding a controlled metal spacer
• Changing spring or fastener design
• Improving housing flatness
• Separating components with different height ranges
• Reducing the nominal gap

If the design always needs three pads to reach the heat sink, the heat sink may be the part that needs attention.

How to Validate Stacked Thermal Pads If Stacking Is Unavoidable

If a stack must be used, treat it as a new thermal interface construction.

Step 1: Identify Both Materials

Record:

• Manufacturer and product code
• Numéro de lot
• Nominal thickness and tolerance
• Dureté
• Conductivité thermique
• Thermal impedance conditions
• Adhesive or reinforcement
• Température de fonctionnement
• Propriétés diélectriques

Step 2: Measure the Real Gap

Define minimum, nominal, and maximum gap. Include component, solder, PCB, housing, heat sink, and fastener tolerances.

Step 3: Calculate Compression and Force

Calculate total nominal compression, then review how the individual layers may share strain.

If force-deflection data are unavailable, the design has a major unknown. A hand squeeze is not a substitute.

Step 4: Control the Middle Interface

Utilisation :

• Clean, unused pads
• Intact liners until assembly
• Aligned edges and cutouts
• No wrinkles
• No unapproved paste
• A documented placement method

Step 5: Compare Against a One-Piece Control

Mesure :

• Température des composants
• Hot-spot temperature
• Thermal impedance where possible
• Force d'assemblage
• Épaisseur finale
• Variation d'unité à unité

A practical NEDC stacking experiment found an additional thermal penalty but did not find it statistically significant in that particular test. The authors also noted that reliability testing was not included. That is exactly why one result should not become a universal rule.

Step 6: Run Reliability Tests

Depending on the product, include:

• Vieillissement thermique
• Cyclage thermique
• Redémarrage
• Vibrations
• Choc mécanique
• Kit de compression
• Humidité
• Exposition aux fluides
• Dielectric testing

Inspect alignment and the middle interface after testing.

Step 7: Define Acceptance Criteria

Set limits before testing:

• Maximum temperature rise
• Maximum unit variation
• Minimum contact area
• Allowed movement
• Épaisseur finale après compression
• Maximum force or PCB deflection
• Dielectric withstand
• Post-aging thermal change

Without acceptance limits, testing becomes a collection of interesting numbers.

Thermal Pad Stacking Standards and Test Methods

No standard gives a universal statement that all stacked thermal pads are safe.

Norme ASTM D5470 relative à l'impédance thermique

ASTM D5470-17 (2024) covers steady-state thermal impedance and apparent thermal conductivity for thermally conductive electrical insulation materials.

For stacking, test the complete construction. Testing each pad separately does not capture the middle interface.

The method uses defined conditions. The measured value cannot be copied directly into every real product without considering pressure, thickness, area, and heat flow.

Compression, Hardness, and Compression Set

Useful methods can include:

• ASTM D575 for compression-deflection behavior
• ASTM D2240 for durometer hardness
• ASTM D395 for compression set

These tests describe different properties. Shore hardness alone does not predict total assembly force.

Fiabilité environnementale

IEC 60068 methods can support temperature change, vibration, shock, and damp-heat testing.

The thermal interface should be checked after exposure. A pad that remains physically present may still have shifted or increased in thermal resistance.

A Practical Thermal Pad Stacking Checklist

Before stacking, ask:

1. Is one pad in the correct thickness available?
2. Has the real gap been measured?
3. Are minimum, nominal, and maximum tolerances known?
4. Are both pads the same identified material?
5. Is the middle interface clean and fully aligned?
6. Does the assembly have enough force without damage?
7. Could the stack reduce contact at another component?
8. Une isolation électrique est-elle nécessaire ?
9. Will the product see vibration or thermal cycling?
10. Is this temporary, or has the stack been formally qualified?

If several answers are unknown, stop and solve the interface rather than adding another sheet.

Conclusion

Thermal pads can be stacked, but physical possibility is not engineering equivalence.

Two 0.5 mm pads may have the same nominal thickness as one 1.0 mm pad. They still add a middle contact interface. That boundary can introduce thermal resistance, trapped air, contamination, misalignment, unequal compression, sliding, and long-term reliability risk.

A temporary stack may be acceptable in a low-risk repair when the gap is understood and temperatures can be monitored. For production or high-reliability electronics, use one pad of the correct thickness, a qualified laminated material, thermal putty, a dispensable gap filler, or a corrected mechanical design.

If stacking cannot be avoided, test the complete stack under realistic pressure. Then repeat the thermal, mechanical, and electrical checks after aging and environmental exposure.

Short version? One correct pad is usually better than two almost-correct ones.

Questions fréquemment posées

Can You Stack Thermal Pads?

Yes, thermal pads can be stacked physically. It is normally better to use one pad of the correct thickness because stacking adds another contact interface and makes compression, alignment, and long-term behavior less predictable.

Are Two 0.5 mm Thermal Pads Equal to One 1.0 mm Pad?

Their nominal thickness is equal, but their installed behavior may not be. Two pads add a middle interface and combine two thickness tolerances. They may also compress unevenly, especially when the materials have different hardness.

Does Stacking Thermal Pads Increase Thermal Resistance?

Usually, it adds some resistance because heat must cross an additional pad-to-pad interface. The size of the increase depends on pressure, material, surface condition, trapped air, and total compressed thickness. It does not automatically double resistance.

Can Thermal Paste Be Applied Between Two Thermal Pads?

It is generally not recommended. Paste adds another uncontrolled material layer and can cause slipping, mess, migration, or inconsistent thickness. Use paste between pads only as part of a supplier-approved and tested construction.

Can Thermal Pads from Different Brands Be Stacked?

They can be placed together, but the result is difficult to predict. Different brands may use different hardness, modulus, fillers, tack, reinforcement, and thickness tolerance. Avoid mixed-brand stacks unless the complete construction is tested.

Can Thermal Pads Be Stacked on GPU VRAM?

A temporary stack may work, but it can also lift the shared cold plate away from the GPU die. Check the original pad specification, GPU paste imprint, pad compression marks, screw sequence, memory temperature, GPU core temperature, and hot-spot temperature.

Can Thermal Pads Be Stacked on an SSD?

It is possible, but excessive thickness can bend the SSD PCB or overload a light heat-sink clip. Check controller and NAND heights, both sides of the drive, and the final board shape. One correctly sized soft pad is preferable.

How Do You Measure the Correct Thermal Pad Thickness?

Measure the assembled minimum, nominal, and maximum gap rather than only the CAD dimension. Consider component height, solder, PCB warpage, housing flatness, heat sink tolerance, and screw load. Then select a pad within its recommended compression range.

What Should You Use When the Exact Pad Thickness Is Unavailable?

The best options are a custom-thickness pad, a suitable thermal putty, a dispensable gap filler, or a mechanical spacer or heat-sink change. The choice depends on gap variation, pressure, cleanliness, electrical insulation, and production needs.

Is Stacking Thermal Pads Acceptable for a Temporary Repair?

It may be acceptable for low-risk temporary use when both pads are clean, the gap is known, contact is confirmed, and temperatures can be monitored. Replace the stack with the correct qualified material when available.
