What Thermal Materials Are Used in Telecom and 5G Equipment?
Telecom and 5G equipment uses thermal pads, dispensable gels, gap fillers, grease, phase change materials, graphite sheets, thermally conductive adhesives and combined thermal-EMI absorber pads. The right material depends on whether the interface must bridge a gap, spread heat, provide electrical isolation, absorb electromagnetic noise, tolerate outdoor aging or support automated assembly.
A soft pad that works under a baseband processor may be wrong beneath an RF power amplifier or inside a sealed outdoor radio. Start with the complete heat path and final compressed interface, then compare conductivity, impedance, pressure, dielectric behavior and aging.
For background on how pads, grease and gels behave, review the main guide to thermal interface materials for electronics.
Where Thermal Interface Materials Work Inside 5G Base Stations
A 5G base station is not one uniform thermal problem. Radio heads place high-power RF devices near antennas. Baseband units combine processors, memory and networking. Power shelves add rectifiers, converters and backup systems. Each zone needs a material format matched to its gap, heat flux, pressure and maintenance plan.
PA, RF Front End and Massive MIMO Arrays
Transfer concentrated heat from power amplifiers, beamforming ICs and RF modules into metal chassis while controlling bond line, pressure and EMI behavior.
Baseband, FPGA, ASIC and Memory
Bridge mixed component heights to spreaders or housings without overloading packages and solder joints.
Optics, Switches, Rectifiers and Converters
Move heat from pluggable optics, controllers and power stages into frames under continuous network load and constrained airflow.
Thermal Management Challenges in Telecom and Outdoor 5G Base Stations
Telecom hardware must control hot spots while remaining compact, sealed and reliable for years. Outdoor radio units add solar heating, moisture, pollutants and repeated day-night cycles. The thermal material must maintain contact as metals, PCBs and packages expand differently, often in vertical equipment where gravity can expose weak rheology.
Concentrated RF and Compute Heat
GaN and LDMOS power amplifiers, ASICs and FPGAs can create local heat flux that an average enclosure temperature does not reveal. The interface must support the hottest device, not only the board average.
Uneven Component Stack-Ups
Memory, inductors, shields and processors sit at different heights. A soft material can bridge tolerance, but excessive thickness or hardness may increase resistance or bend the PCB.
Limited Air Exchange
Outdoor radios often depend on conduction into an aluminum enclosure. Every interface between the device and external fins becomes more important when internal convection is weak.
Humidity, Salt and Pollution
Material edges, liners, adhesives and nearby metals may face condensation or corrosive contamination. Chemical compatibility and enclosure sealing belong in the same validation plan.
Heat and Electromagnetic Noise
Some locations need both heat transfer and electromagnetic absorption. Electrical conductivity, grounding strategy, shielding and RF frequency range must be reviewed together.
Pump-Out, Compression Set and Aging
Long thermal cycles can move grease, relax pads or change gap filler contact. Initial W/mK data says little about this unless aging is tested in a representative stack.
Thermal Interface Material Options for Telecom and 5G Hardware
Choose the material family by interface function first. Pads suit controlled gaps and clean placement. Dispensable gels handle complex geometry and tolerance variation. Grease wets very thin clamped joints. Phase change materials create controlled thin interfaces. Absorber pads address heat and EMI together. Adhesives add mechanical attachment.
01Thermal Pads

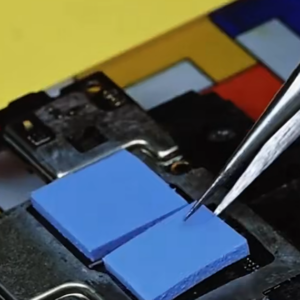

Soft, electrically insulating sheets for repeatable gaps between components, boards, spreaders and housings.
- Custom thickness and hardness
- Die-cut shapes and liners
- Clean manual or automated placement
02Liquid Gap Fillers and Gels

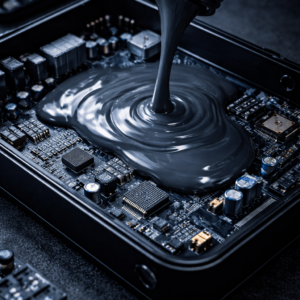

Dispensable materials that conform around mixed component heights with low assembly stress.
- One- or two-component systems
- Controlled bead and cure behavior
- Complex board and housing geometry
03Low-Resistance Thermal Grease
Thin, highly wetting compounds for tightly clamped flat interfaces such as power devices and heat spreaders.
- Thin bond line
- Stencil or dispense process
- Pump-out and bleed validation
04Phase Change TIM
Solid handling at room temperature with heat-activated wetting in thin interfaces.
- Clean preform or coating
- Controlled placement
- Production-friendly interface
05Thermal EMI Absorber Pads
Composite pads for locations that need heat transfer plus attenuation of electromagnetic interference.
- Frequency-specific absorption
- Gap filling and contact
- Electrical and grounding review
06Thermally Conductive Adhesives
Bonding materials that create a thermal path while attaching heat sinks, components or structural parts.
- Epoxy, silicone and hybrid systems
- Bond-line and cure control
- Mechanical and thermal qualification
How to Select Thermal Interface Materials for 5G Base Stations
Selection should start with final interface geometry and mechanical limits, then move to thermal and environmental performance. A high-conductivity material can still run hot when it is too thick, poorly compressed or unable to wet both surfaces. Compare the material in the assembled condition, not as a catalog number floating by itself.
| Selection Factor | Why It Matters | What to Specify | Validation Evidence |
|---|---|---|---|
| Thermal target | Connects device loss and cooling boundary to the allowed temperature. | Heat load, case limit, housing or heat-sink temperature and interface area. | Component temperature or thermal impedance in the real assembly. |
| Gap and bond line | Thickness directly affects bulk resistance and contact. | Minimum, nominal and maximum assembled gap, including flatness. | Cross-section, thickness measurement or pressure-sensitive evidence. |
| Pressure budget | Too much force can damage packages, solder joints, PCB or optics. | Clamping method, screw pattern, compression range and stress limit. | Force-displacement data, pressure mapping and mechanical inspection. |
| Electrical behavior | RF and power hardware may require dielectric isolation or controlled conductivity. | Voltage, dielectric strength, volume resistivity, grounding and creepage needs. | Electrical test after compression and environmental aging. |
| Outdoor exposure | Heat, humidity and contaminants can change contact or nearby materials. | Temperature cycle, humidity, salt, pollutants, UV exposure and service life. | Aging, cycling, compatibility and post-test thermal measurements. |
| Production format | The best material must still fit placement, dispensing and inspection. | Sheet, roll, die-cut, cartridge, stencil or pre-applied supply. | Process capability, placement yield, dispense stability and rework trial. |
Thermal Materials for Outdoor 5G Radio Units and Base Stations
Outdoor base stations may spend years in direct sun, freezing nights, humid air, coastal salt or industrial pollution. The housing protects electronics, but sealing reduces air exchange. Materials must preserve contact through repeated expansion, vertical orientation and vibration while remaining compatible with coatings, gaskets, metals and enclosure protection.
Model the true temperature cycle
Combine device self-heating with ambient temperature and solar load. A radio can see a wider internal swing than local weather data suggests.
Check vertical and inverted orientation
Grease, gel and uncured materials can slump or migrate when gravity acts for months. Test the same orientation used in service.
Separate sealing from thermal transfer
A waterproof enclosure does not make every internal material waterproof. Review edge exposure, condensation paths and chemical compatibility.
Inspect after aging, not only before
Repeat thermal, electrical and visual checks after cycling, humidity and vibration. Look for pad relaxation, grease movement, cracks, bleed and corrosion.
For more environmental context, see how thermal materials interact with waterproof and dustproof design.
Six Steps to Specify Telecom and 5G Thermal Interface Materials
A good specification follows the heat path from device to environment. It records geometry and pressure before comparing materials, then proves the choice through production and reliability testing. This sequence prevents a common problem: selecting a strong datasheet material that cannot be assembled consistently.
Map Heat Sources
List RF PA, ASIC, FPGA, processor, memory, optical and power components with normal and peak dissipation.
Measure the Stack
Record minimum, nominal and maximum interface gaps after board, housing, shield and fastener tolerances.
Set Pressure Limits
Define the safe load on packages, solder joints, PCB, connectors and the enclosure across the tolerance range.
Choose the Function
Decide whether the interface needs gap filling, thin wetting, insulation, bonding, heat spreading or EMI absorption.
Plan Production
Select sheet, roll, die-cut, cartridge or pre-applied supply with placement and inspection criteria.
Validate the Assembly
Measure thermal and mechanical behavior before and after the environmental profile required by the product.
Build a Strong 5G Thermal Material Specification
Share the assembly context before asking for a sample. Haktak can then compare standard materials or define a custom format around the actual interface.
Thermal Material Priorities Across Telecom and 5G Systems
The same material should not be forced into every product. A remote radio unit emphasizes outdoor cycling and chassis conduction. A baseband rack prioritizes mixed component heights and airflow. Optical transport adds compact hot spots. Power shelves add voltage, high current and long duty cycles.
RRU, AAU and Massive MIMO
- RF power amplifier hot spots
- Outdoor sealed enclosure
- EMI and grounding constraints
- Vertical thermal cycling
BBU, Edge Compute and Control
- ASIC, FPGA and processor interfaces
- Memory and VRM height variation
- Serviceable spreaders and housings
- Long rack operating life
Switches, Routers and Optical Modules
- Dense board and pluggable optics
- Chassis and heat-spreader contact
- Restricted airflow
- Rework and module replacement
Rectifiers, Converters and Backup Power
- MOSFET, IGBT and magnetic heating
- Electrical isolation requirements
- High continuous duty
- Vibration and temperature cycling
Common 5G Base Station Thermal Material Design Mistakes
Most interface problems are not caused by a completely unsuitable chemistry. They come from a material being used at the wrong thickness, pressure or location, or from a production method that does not reproduce the lab sample. Finding these issues before tooling is cheaper than trying to cool a finished enclosure later.
Selecting Only by W/mK
Bulk conductivity is only one part of the heat path. A harder high-W/mK pad can leave poor contact or require a thicker bond line. Compare thermal impedance under the expected compression, then measure the component temperature in the housing. A smaller catalog number can sometimes produce the cooler assembly. It feels odd, but contact is doing real work.
Using the Nominal Gap Alone
A drawing may show a 1.0 mm gap while real assemblies vary because of PCB bow, component height, coating, housing flatness and fastener position. Design around the minimum and maximum stack. The material must still touch at the largest gap and remain mechanically safe at the smallest gap.
Ignoring the Pressure Map
Average compression can hide local overload and no-contact zones. Large radio and baseband boards rarely clamp uniformly. Review screw locations, ribs, shields and enclosure deflection. Pressure-sensitive film or a suitable mechanical model can reveal where a pad may damage a package or fail to wet a surface.
Testing Only in a Flat Lab Fixture
Coupon testing is useful for screening, but it does not reproduce a vertical outdoor radio with real fasteners and mixed surfaces. The final qualification should include production hardware, operating orientation and the actual cooling boundary. Otherwise pump-out, slump, pad movement or enclosure distortion may appear only after launch.
Adding Adhesive Without Rechecking Heat Flow
An adhesive backing can improve placement, yet it also adds another layer and changes surface wetting. It may affect thermal impedance, peel behavior and rework. Test the complete pad construction with its liner and adhesive, not an uncoated laboratory sample that production will never use.
Separating Thermal, EMI and Environmental Design
A material near an RF circuit may influence grounding, shielding and absorption. A material near a housing edge may face moisture or pollutants. Review thermal, RF, electrical, sealing and mechanical functions together. Optimizing one function in isolation can quietly weaken another part of the system.
Testing Thermal Interface Materials for Telecom and 5G Reliability
Material-property tests help screen candidates, but the final stack decides field performance. Use the real device, housing, fasteners, orientation and cooling condition. Measure the initial result, apply the relevant environmental stresses, then repeat the measurement and inspect the interface.
A structured material selection and testing program can connect coupon data with the final telecom assembly.
Thermal Impedance
Compare candidates at the final bond line, pressure and temperature. Record test method and surface condition.
Pressure and Compression
Measure force across the full gap tolerance and check stress on packages, PCB and solder joints.
Temperature Cycling
Use realistic high and low temperatures, ramp, dwell, orientation and cycle count for the equipment.
Humidity and Corrosion
Evaluate electrical behavior, materials compatibility, corrosion and interface condition after exposure.
Vibration and Shock
Inspect pad movement, grease migration, fastener change and thermal result after mechanical loading.
Process Capability
Confirm placement, dispense volume, liner release, cure, inspection and lot-to-lot repeatability.
Custom Thermal Pads and Gap Fillers for Telecom Production
Telecom projects often need more than a standard sheet. Haktak can support thickness, hardness, die-cut geometry, liner, tack, packaging and dispensable formats around the real drawing and production flow. Custom work should improve assembly repeatability, not just change a part number.
For placement-ready sheet parts, review the guide to thermal pad die cutting and custom shapes.
Related Telecom Thermal Design Guides
Use these guides to deepen the specification without repeating the same internal destination. Each resource addresses a different design decision: telecom use cases, pressure, system-level impedance and long-term failure.
Telecom and 5G Thermal Material FAQ
Short answers to common engineering and purchasing questions about 5G base station cooling materials.
What thermal interface materials are used in 5G base stations?
Common choices include silicone and non-silicone thermal pads, dispensable gap fillers, thermal gels, grease, phase change materials, graphite sheets, thermally conductive adhesives and thermal EMI absorber pads. The correct format depends on the gap, pressure, electrical design, RF behavior, environment and assembly process.
Where are thermal pads used in telecom equipment?
Thermal pads commonly connect processors, FPGAs, memory, power devices, RF modules, optical controllers and board components to heat spreaders, shields or metal housings. They are useful where a measurable gap or component-height variation must be bridged cleanly.
Which material is best for an outdoor 5G radio unit?
There is no universal best material. Outdoor radios usually need stable contact through temperature cycling, humidity, vibration and vertical operation. Select by final thermal impedance, gap tolerance, pressure, dielectric needs, environmental compatibility and post-aging performance.
Is higher W/mK always better for 5G equipment?
No. A high-W/mK material can perform poorly when it is too thick, too hard or weakly compressed. Compare thermal impedance at the real bond line and pressure, then verify device temperature in the assembled enclosure.
How much should a telecom thermal pad compress?
The safe compression range depends on pad hardness, thickness, gap tolerance and component stress limit. Use enough compression to create full contact at the maximum gap, but confirm that the minimum gap does not overload packages, solder joints or the PCB.
Can one material handle both heat and EMI?
Yes, thermal electromagnetic absorber pads can provide gap filling, heat transfer and RF absorption in selected frequency ranges. They must be evaluated with shielding, grounding, electrical conductivity, thickness and compression because thermal and RF targets may pull the design in different directions.
Should a 5G radio use a pad, gel or grease?
Use a pad for controlled gaps and clean placement, gel for complex or variable gaps, and grease for very thin clamped joints. The housing design, service process, vertical orientation, pump-out risk and automation plan often decide between them.
How are thermal materials tested for outdoor telecom reliability?
Start with thermal and mechanical measurements in the real stack. Then apply relevant temperature cycling, humidity, salt or pollutant exposure, vibration and orientation tests. Repeat thermal and electrical measurements afterward and inspect for movement, bleed, cracks, compression loss or corrosion.
Do thermal pads provide electrical insulation?
Many silicone thermal pads are electrically insulating, but this must be confirmed from test data at the chosen thickness and after compression. Creepage, clearance, cut edges, holes and aging also affect the electrical safety design.
Can Haktak supply custom die-cut telecom thermal pads?
Yes. Custom options can include thickness, hardness, conductivity, tack, liner, holes, slots, tabs, kiss-cut arrays and packaging for manual or automated placement. A drawing and gap-pressure range help define a suitable prototype.
What information is needed to recommend a telecom TIM?
Share the heat source, power, temperature limit, contact area, gap tolerance, pressure, surface materials, voltage, outdoor profile, placement or dispensing process, reliability tests and expected production volume.
How can I reduce thermal resistance without increasing assembly stress?
Reduce unnecessary bond-line thickness, improve flatness and contact area, use a softer material at the required impedance, and control pressure distribution. Test several thickness-hardness combinations rather than selecting only by conductivity.
